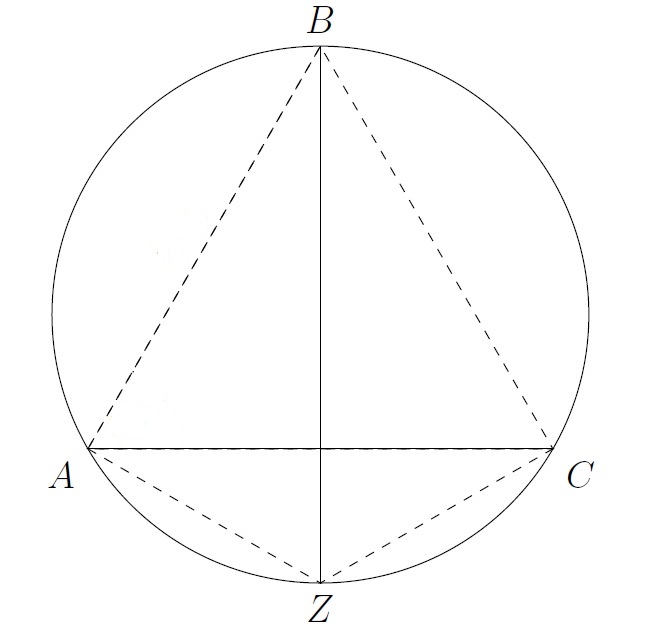

The diagram below shows a circular car tunnel with $AB=\var{d}$ metres and angle $BAC=\var{A}^\circ$ . Assume that angle $BAZ=$ angle $BCZ=90^\circ$ and that $BZ$ is perpendicular to $AC$ . Find the diameter, $BZ$ , of the tunnel. Write the diameter in the box below and show your full working on your working paper.

Diameter = Diameter m (give your answer correct to 2 decimal places)

Advice

Let $D$ be the point at the intersection of $AC$ and $BZ$ . We have that angle $BDA=90^\circ$ and hence angle $ABD=\var{90-A}^\circ$ .

Since angle $BAZ=90^\circ$ we have

$\cos\var{90-A}^\circ=\frac{\var{d}}{BZ}$ and hence

$\begin{align}BZ&=\frac{\var{d}}{\cos\var{90-A}^\circ}\\&\approx\var{precround(d/sin(pi*A/180),2)}\end{align}$

Hence the diameter of the tunnel is approximately $\var{precround(d/sin(pi*A/180),2)}$ metres.
