An application of quadratic functions based on the Gladesville Bridge in Sydney, Australia. Student is given an equation representing the arch of the bridge and asked to find the height of the arch and the width of the river. Requires and understanding of the quadratic function and where and how to apply correct formulae.

Try to answer the following questions here:

What is this question used for?
What does this question assess?
What does the student have to do?
How is the question randomised?
Are there any implementation details that editors should be aware of?

Contributors

Don Shearman

History

○

Don Shearman 10 months, 4 weeks ago

Published this.

○

Don Shearman 3 years, 7 months ago

Created this.

There is only one version of this question that you have access to.

Question statement

Give any introductory information the student needs.

			Name	Type	Generated Value

Automatically regenerate variables?

No variables have been defined in this question.

Parts

Gap-fill
1. Gap Width Number entry
  Add
2. Gap Height Number entry
  Add

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

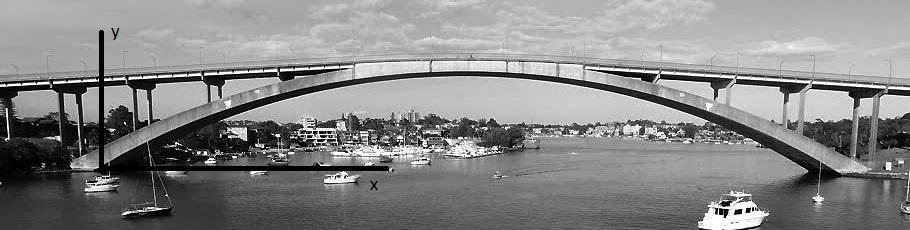

The Gladesville Bridge is an arch bridge which spans the Parramatta River near Sydney. The bottom of the arch of the bridge (see illustration) can be modeled by the equation

$y=\frac{180}{305}x(1-\frac{1}{305}x)$ where

$y$ is the height of the arch above the water line in metres and

$x$ is the horizontal distance from the left bank of the river in metres.

What is the width of the river? (Hint: the arch is at the edge of the river on either side) Show full working in your handwritten working.

Width of river = Width metres

If the roadway is $3$ m above the the top of the arch, what is the maximum height of the road above the water line? Show full working in your handwritten working.

Height of roadway = Height metres

Advice

Width of river

To find the width of the river first note that at $x=0$ $y=0$ . At the opposite bank we will also have $y=0$ , hence we need to solve

$0=\frac{180}{305}x(1-\frac{1}{305}x)$
This will occur at

$1-\frac{1}{305}x=0$
that is

$x=305$ . Hence the width of the river is

$305$ metres.

Height of roadway

We need to find the maximum value of the quadratic equation $y=\frac{180}{305}x(1-\frac{1}{305}x)$ . Expanding this gives us the equation

$y=-\frac{180}{93025}x^2+\frac{180}{305}x$
The maximum height will occur at

$\displaystyle{t=\frac{-b}{2a}}$ , that is

$\displaystyle{t=\frac{180\times 93025}{305\times 2\times 180}= 152.5}$ m.
The maximum height is

$\begin{align}h&=c-\frac{b^2}{4a}\\&=0+\frac{\left(180/305\right)^2}{4\times180/93025}\\&= 45 \quad\text{metres}\end{align}$
(This value could also be found by substituting the value of

$x$ found above into the function.)
Hence the roadway will be

$45 + 3 =48$ metres above the water line.
