An application of quadratic functions based on the Gateshead Bridge in the UK city of Newcastle. Student is given an equation representing the arch of the bridge and asked to find the height of the arch and the width of the river. Requires and understanding of the quadratic function and where and how to apply correct formulae.

Try to answer the following questions here:

What is this question used for?
What does this question assess?
What does the student have to do?
How is the question randomised?
Are there any implementation details that editors should be aware of?

Contributors

Don Shearman

History

○

Don Shearman 10 months, 4 weeks ago

Published this.

○

Don Shearman 3 years, 7 months ago

Created this.

There is only one version of this question that you have access to.

Question statement

Give any introductory information the student needs.

			Name	Type	Generated Value

Automatically regenerate variables?

No variables have been defined in this question.

Parts

Gap-fill
1. Gap Width Number entry
  Add
2. Gap Height Number entry
  Add

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

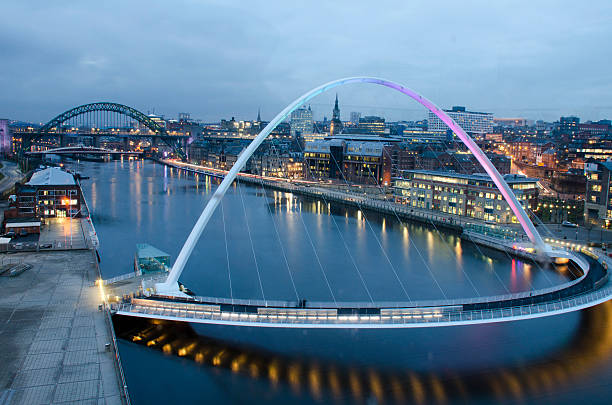

The arch of the Gateshead Millenium Bridge in the United Kingdom (see illustration), forms a parabola which can be described by the equation

$y=-\frac{2}{125}x^2+\frac{210}{125}x+\frac{9}{10}$

where $y$ is the height of the arch above the water line in metres and $x$ is the horizontal distance from the left end of the arch in metres.

What is the width of the arch at it's base? (You may asume that the height of the base of the arch is the same on both sides of the river.) Show full working on your handwritten working.

Width of arch = Width metres

What is the height of the top of the arch above the water line? Show full working on your handwritten working.

Height of arch = Height metres

Advice

Width of river

To find the width of the river first note that at $x=0$ $y=\frac{9}{10}$ . At the opposite bank we will also have $y=\frac{9}{10}$ , hence we need to solve

$\frac{9}{10}=-\frac{2}{125}x^2+\frac{210}{125}x+\frac{9}{10}$

$0=-\frac{2}{125}x^2+\frac{210}{125}x=\frac{2}{125}x\left(105-x\right)$
This will occur at

$105-x=0$
that is

$x=105$ . Hence the width of the river is

$105$ metres.

Height of arch

We need to find the maximum value of the quadratic equation $y=-\frac{2}{125}x^2+\frac{210}{125}x+\frac{9}{10}$ .
The maximum height will occur at $\displaystyle{x=\frac{-b}{2a}}$ , that is $\displaystyle{x=\frac{210\times 125}{2\times 2\times 125}= 52.5}$ m.
The maximum height is

$\begin{align}h&=c-\frac{b^2}{4a}\\&=\frac{9}{10}+\frac{\left(210/125\right)^2}{8/125}\\&= 45 \quad\text{metres}\end{align}$
(This value could also be found by substituting the value of

$x$ found above into the function.)
