Question statement

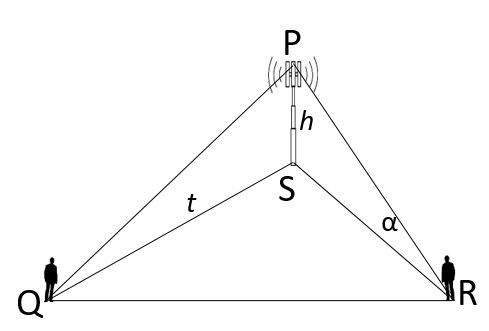

$PS$ is a vertical Modacell cell phone tower.

Two people are standing at points $Q$ and $R$ (in the same horizontal plane as $S$ ) from where they are testing their cell phone reception.

From $R$ the angle of elevation to $P$ is $\alpha =\frac{\pi}{6}$ and $QS$ is $t$ meter. $P$ is $h$ meters above ground level.

Give any introductory information the student needs.

			Name	Type	Generated Value

PR	integer	40
PQ	number	63.25
QPR	number	0.9112487387

Automatically regenerate variables?

Name

Data type

Value

xxxxxxxxxx

40

JME function reference

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

→ Used by:

Parts

Gap-fill
1. Gap Gap 0. Mathematical expression
  Add
2. Gap Gap 1. Number entry
  Add
3. Gap Gap 2. Number entry
  Add
4. Gap Gap 3. Number entry
  Add

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

3.1 Express $PQ$ in terms of $h$ and $t$.

Gap 0.

3.2 IF $h=20\ m$ and $t = 60\ m$, determine $PQ.$

Gap 1.m

3.3 Determine the length of $PR.$

Gap 2.m

3.4 If $QR = 50\ m$, determine $Q\hat{P}R.$

Gap 3.

Advice

3.1 In $\Delta PSQ$

$PQ^2 \ =\ PS^2+SQ^2 = h^2+t^2$

$PQ\ =\ \sqrt{h^2+t^2}$

3.2 $PQ\ =\ \sqrt{h^2+t^2}$

$=\ \sqrt{20^2+60^2}$

$=\ \sqrt{4000}=63.2455...\approx 63.246\ m$

3.3 In $\Delta PSR$

$\sin(\frac{\pi}{6}) \ =\ \frac{PS}{PR}$

$PR =\ \frac{h}{\frac{1}{2}} \ =\ 2h \ =\ 40\ m$

3.4 In $\Delta QPR$

$\cos(Q\hat{P}R) = \frac{PQ^2+PR^2-QR^2}{2.PQ.PR}$

$\cos(Q\hat{P}R) = \frac{63.25^2+40^2-50^2}{2(63.25)(40)} = 0.6127 ...$

$Q\hat{P}R = 0.911...\approx 0.91$

Give a worked solution to the whole question.
