Question statement

The coefficient of friction is $\mu_s=\var{mu_s}$ between all surfaces of contact. Knowing that $M_1=\var{M1}$ kg and $M_2=\var{M2}$ kg, determine the smallest force $P$ required to start the block $M_2$ moving.

Give any introductory information the student needs.

			Name	Type	Generated Value

mu_s	number	0.4
M1	integer	20
M2	integer	30
P1	number	353.16
P2	number	196.2

Automatically regenerate variables?

Name

Data type

Value

(a number)

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `number`

0.4

→ Used by:

Statement
Advice

Parts

Part a) Gap-fill
1. Gap P1 Engineering Accuracy with units
  Add
Part b) Gap-fill
1. Gap P2 Engineering Accuracy with units
  Add

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

cable AB is connected.

$P$ = P1

Advice

(a)

Free body: $\var{M1}$-kg block

$W_1=M_1 g=\var{m1}\times 9.81=\var{m1*9.81}\,\text{N}$

$+\!\!\uparrow\sum F_y=0:\quad N_1=W_1$

$F_1=\mu_s N_1=\var{mu_s}\times\var{m1*9.81}=\var{mu_s*m1*9.81}\,\text{N}$

$\overset{+}{\rightarrow}\sum F_x=0:\quad T-F_1=0,\quad T=F_1=\var{mu_s*m1*9.81}\,\text{N}$

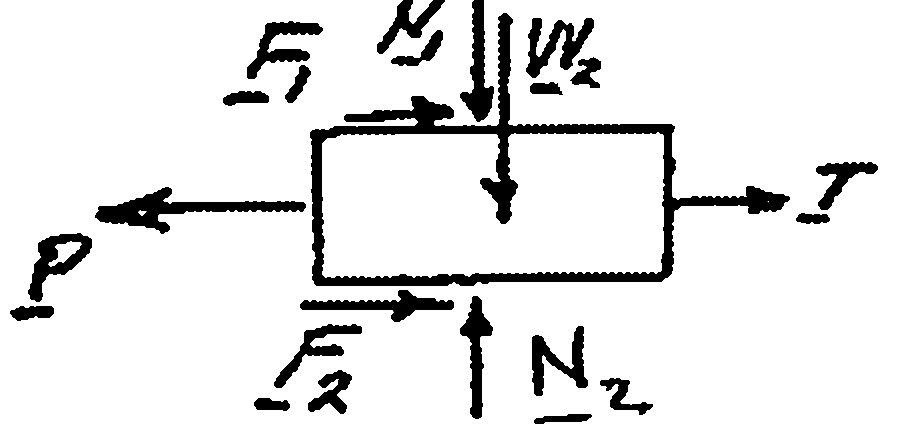

Free body: $\var{M2}$-kg block

$W_2=M_2g=\var{M2}\times 9.81=\var{m2*9.81}\,\text{N}$

$+\!\!\uparrow\sum F_y=0: $

$N_2-N_1-W_2=0,$

$N_2=W_1+W_2=\var{(m1+m2)*9.81}\,\text{N}$

$F_2=\mu_s N_2=\var{mu_s}\times\var{(m1+m2)*9.81}=\var{mu_s*(m1+m2)*9.81}\,\text{N}$

$\overset{+}{\rightarrow}\sum F_x=0: -P+F_1+F_2+T=0$

\[P=F_1+F_2+T=\var{P1}\,\text{N}\quad\blacktriangleleft\]

(b)

Blocks move together

$W=(M_1+M_2)g=\var{(m1+m2)*9.81}\,\text{N}$

$\overset{+}{\rightarrow}\sum F_x=0:$

$P-\mu_s N=0$

$P=\mu_s N=\mu_s W=\var{mu_s}\times\var{(m1+m2)*9.81}=\var{P2}\,\text{N}$

\[P=\var{P2}\,\text{N}\quad\blacktriangleleft\]

Give a worked solution to the whole question.
