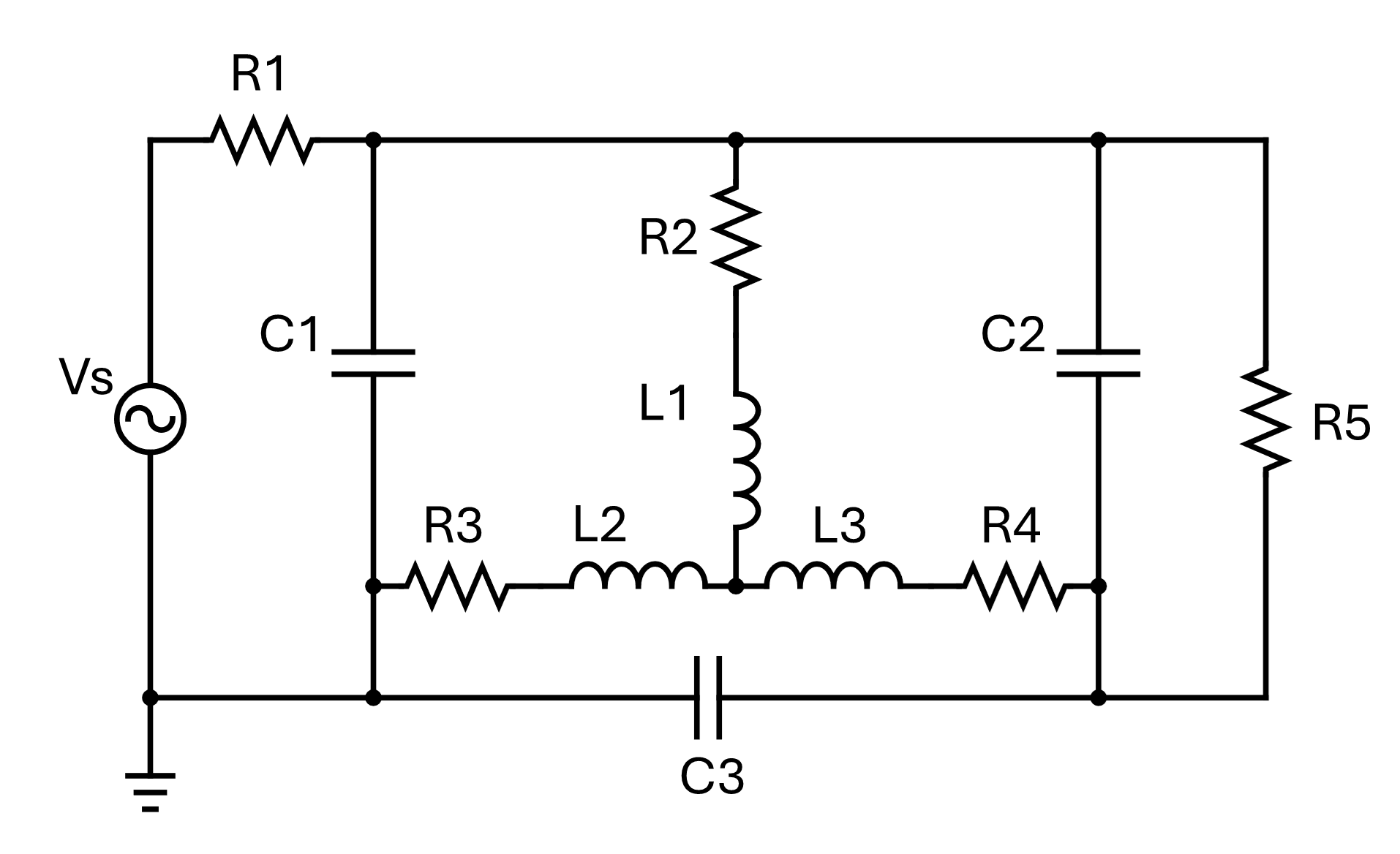

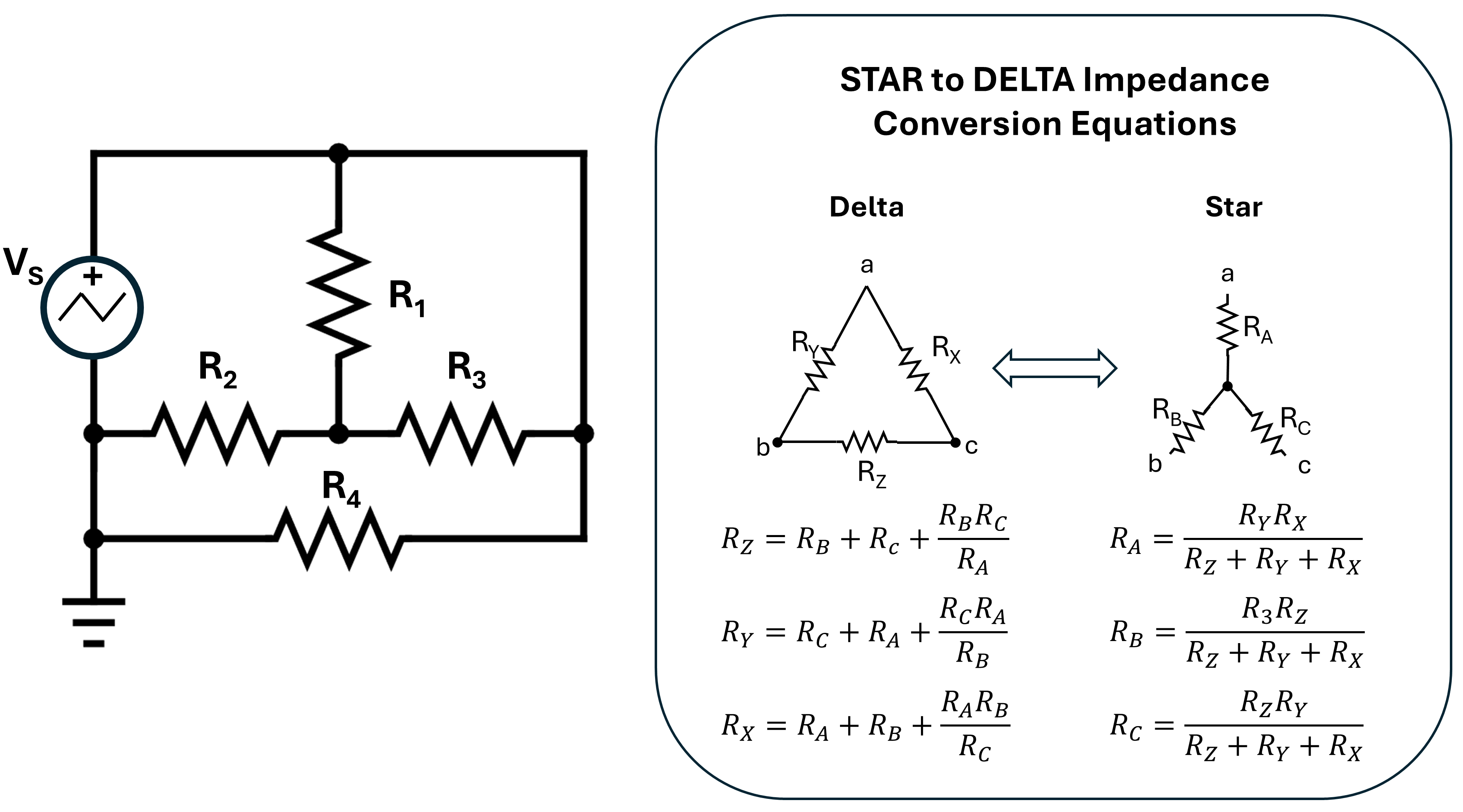

Created this as a copy of ElQ3 - Power & Frequency Response - Randomised Variables Only.| Name | Status | Author | Last Modified | |
|---|---|---|---|---|
| ElQ3 - Power & Frequency Response - Randomised Variables Only | Ready to use | Robert Bauld | 16/05/2024 16:28 | |
| EL Q003 - Power & Frequency Response | Ready to use | Robert Bauld | 03/04/2025 11:27 | |
| EL Q007 - Solid State Devices & Frequency Response | Ready to use | Robert Bauld | 07/01/2025 11:07 | |
| El Q005 - Rectification & Regulation - Randomised Variables Only | Ready to use | Robert Bauld | 31/03/2025 15:39 |
| Name | Type | Generated Value |
|---|
| Q3b_VS | integer |
12
|
||||
| Q3b_R1 | integer |
18
|
||||
| Q3b_R2 | integer |
120
|
||||
| Q3b_R3 | integer |
120
|
||||
| Q3b_R4 | integer |
120
|
||||
| Q3b_R5 | integer |
18
|
||||
| Q003b_L | number |
0.1
|
||||
| Q003b_C | integer |
70
|
| Name | Type | Generated Value |
|---|
| Q3ai_f_S | integer |
130
|
||||
| Q3ai_R_L | integer |
90
|
||||
| Q3ai_V_DC | number |
0
|
||||
| Q3ai_V_PP | integer |
9
|
||||
| Q3ai_DutyCycle | number |
0.3
|
||||
| q3aii_f_s | integer |
66
|
||||
| Q3aii_R_L | integer |
2000
|
||||
| Q3aii_t_rise | decimal |
dec("0.005051")
|
||||
| Q3aii_t_rise_modifier | integer |
3
|
||||
| Q3aii_V_DC | integer |
1
|
||||
| q3aii_v_pp | integer |
5
|

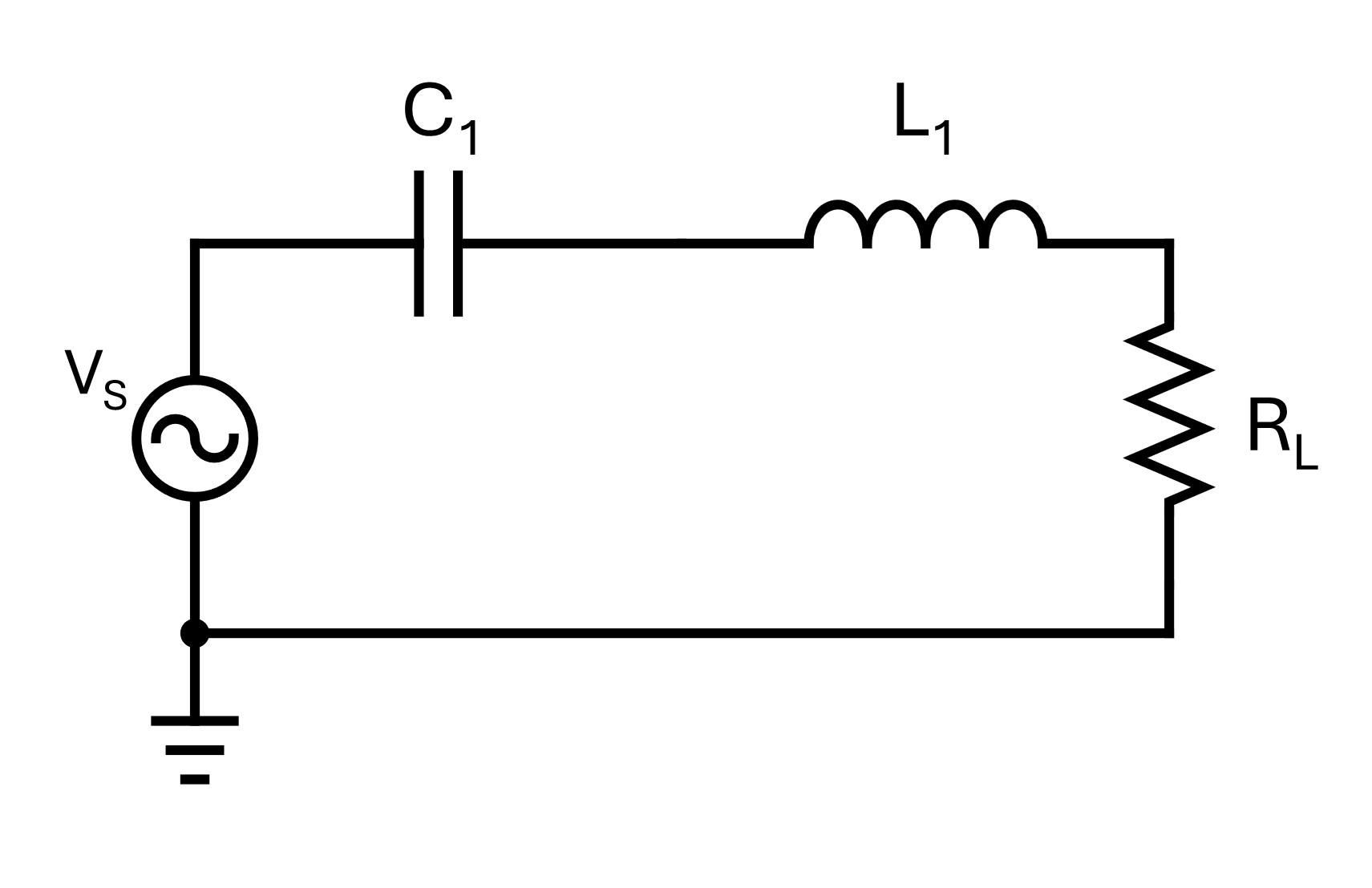

| Name | Type | Generated Value |
|---|
| Q3c_R_L | integer |
1
|
||||
| Q3c_C1 | integer |
3
|
||||
| Q3c_V_S | integer |
20
|
||||
| Q3c_Z_BDV | decimal |
dec("3.0")
|

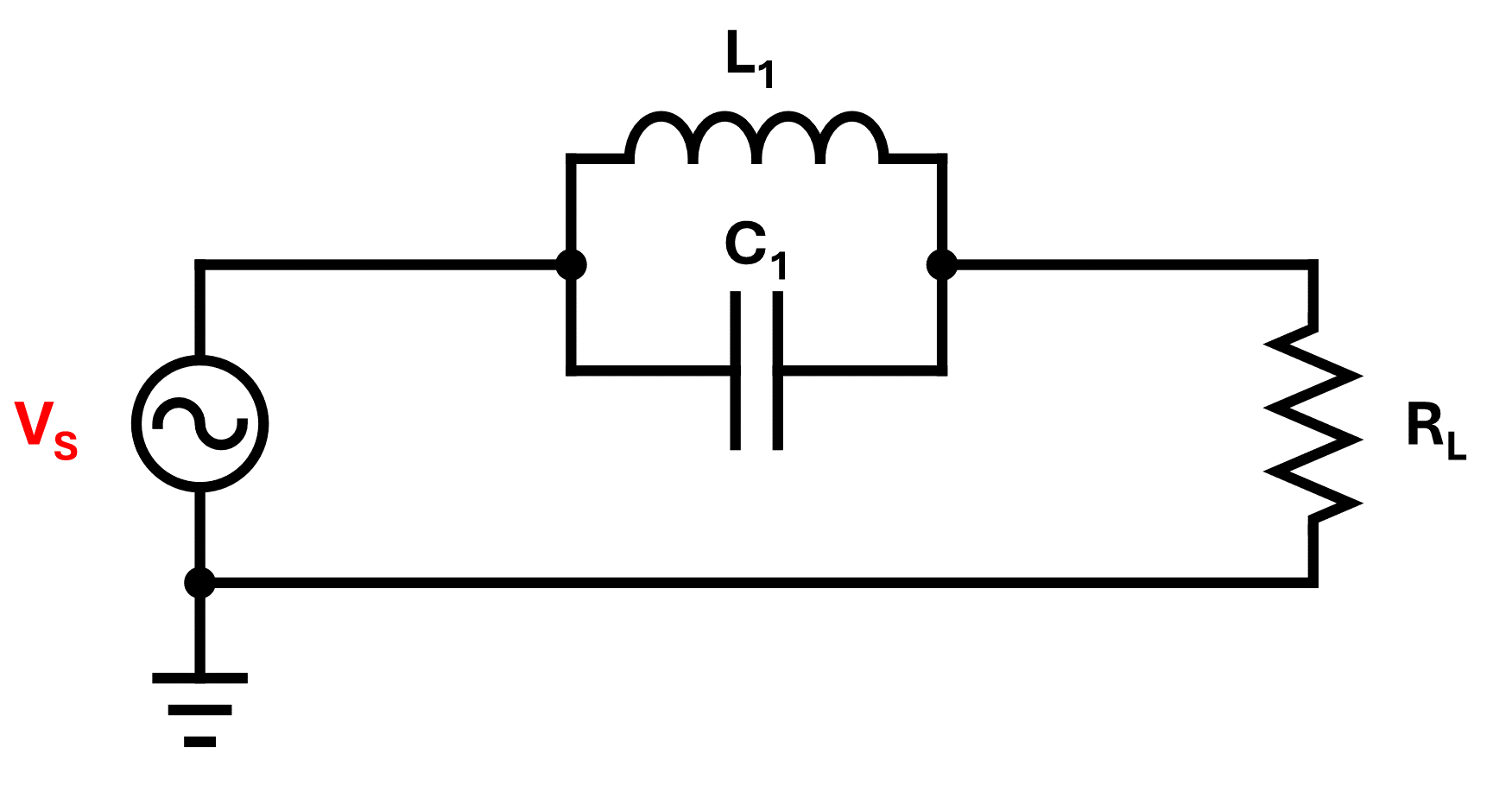

| Name | Type | Generated Value |
|---|
| Q3d_C1 | number |
10.4
|
||||
| Q3d_V_S | integer |
10
|
||||
| Q3d_L1 | integer |
180
|
||||
| Q3d_R_L | integer |
5
|
| Name | Type | Generated Value |
|---|
Generated value: integer
This variable doesn't seem to be used anywhere.
Information only
Ask the student a question, and give any hints about how they should answer this part.
Part a) Signal Waveforms
Draw or derive the voltage and current wave forms for the following:
| Waveform |
Varibles |

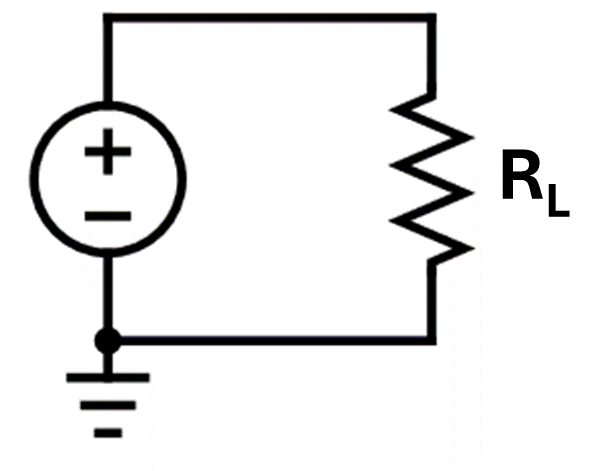

Circuit |
| i. Pulsed DC |
RL: {Q3ai_R_L} Ω Frequency (fs): {Q3ai_F_S} Hz VP-P: {Q3ai_V_PP} V DC Offset (VDC): {Q3ai_V_DC} V Duty Cycle: {Q3ai_DutyCycle*100}% |
|
| ii. Triangular |
RL: {Q3aii_R_L/1000} kΩ Frequency (fs): {Q3aii_F_S} Hz VP-P: {Q3aii_V_PP} V DC Offset (VDC): {Q3aii_V_DC} V tRise: {Q3aii_t_rise*1000} ms |
|
SPICE Circuit suitable for analysis: FoES Q003a
[4 Marks]
Use this tab to check that this question works as expected.
| Part | Test | Passed? |
|---|---|---|
| Information only | ||
| Information only | ||
| Information only |
This question is used in the following exams:
- USSJRN-45-1 - Electronics Progress Assessment (1) by Robert Bauld in Foundations of Engineering Science.
- USSJRN-45-1 - Block Week Electronics Assessment [3] by Robert Bauld in Foundations of Engineering Science.
- USSJRN-45-1 - LK 23071149 - Electronics Assessment by Robert Bauld in Foundations of Engineering Science.
