Question statement

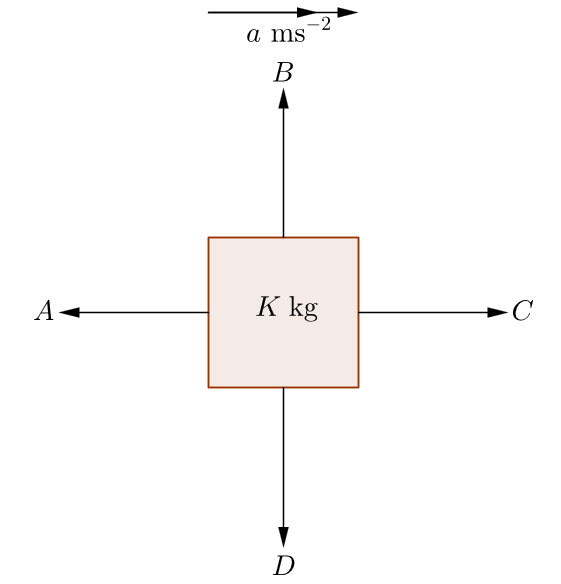

Consider the following diagram of a particle of mass $K \ \mathrm{kg}$ , moving left-to-right. The forces $A, B, C$ and $D$ are acting upon it, producing a horizontal acceleration of $a \, \mathrm{ms^{-2}}$

The acceleration due to gravity is $9.8 \, \mathrm{ms}^{-2}$ . Answer all the following questions to 3 decimal places.

Give any introductory information the student needs.

			Name	Type	Generated Value

a	number	7
K	integer	9
FA	number	4.5
FD	integer	9
a2	number	4.75
K2	integer	1
FA2	number	57
downforce	integer	10
FD2	integer	1

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

acceleration

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `number`

This variable doesn't seem to be used anywhere.

Parts

Part a) Gap-fill
1. Gap Number entry
  Add
Part b) Number entry
Part c) Number entry

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

Suppose that the acceleration $a = \var{a}$ and the mass of the particle $K = \var{K} \ \mathrm{kg}$ . Find the force $C \ \mathrm{N}$ if $A = \var{FA}\ \mathrm{N}$ .

$C =$ Unnamed gap $\mathrm{N}$

Advice

a)

To find the resultant force in a certain direction when there is more than one force acting on an object you can resolve the forces. You resolve in the direction of acceleration. Using the letter $R$ , with an arrow will indicate the direction the forces are being resolved in, for example $R(\rightarrow)$ .

In this case $R(\rightarrow)$ means apply $F=ma$ in the positive direction. So we need to resolve the equation

$\begin{align}F & = ma \\ C - \var{FA} & = \var{K} \times \var{a} \\ C & = \var{K*a} + \var{FA} \\ & = \var{K*a + FA}. \end{align}$

Here the forces, $F=C - \var{FA}$ because $\var{FA}$ is acting in the opposite direction to $C$ . The mass is $m=\var{K}$ and the acceleration is $a=\var{a}$ . Therefore $C = \var{K*a+FA}\ \mathrm{N}$ .

b)

In this case we resolve in the direction perpendicular to acceleration so we use $R(\uparrow)$ which means apply $F=ma$ in the vertical direction, where acceleration, $a=0$ because there is no vertical acceration.

$\begin{align} F & = ma \\ B - \var{FD}g & = \var{K} \times 0 \\ B & = 0 + \left(\var{FD} \times 9.8\right) \\ & = \var{FD*9.8} \end{align}$
Here the forces,

$F=B - \var{FD}g$ because

$\var{FD}g$ is acting downwards which is the opposite direction to

$B$ . Therefore

$B = \var{FD*9.8} \ \mathrm{N}$ .

c)

It is easier to take the positive direction as the direction of the acceleration. Therefore we use $R(\leftarrow)$ because we are decelerating.

$\begin{align} F & = ma \\ \var{FA2} - C & = \var{K2} \times \var{a2} \\ C & = \var{FA2} - \left( \var{K2} \times \var{a2} \right) \\ & = \var{FA2 - K2*a2}. \end{align}$

Here the forces, $F = \var{FA2} - C$ because $\var{FA2}$ is in the direction of acceleration and $C$ is acting in the opposite direction. The mass is $m = \var{K2}$ and $a=\var{a2}$ . Therefore $C = \var{FA2 - K2*a2} \ \mathrm{N}$ .
