Question statement

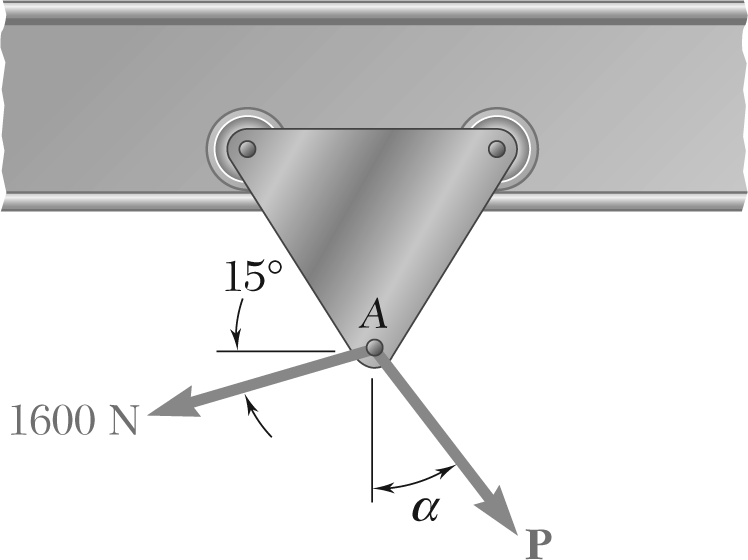

A trolley that moves along a horizontal beam is acted upon by two forces as shown. Knowing that $\alpha=\var{a}^\circ$ ,

Give any introductory information the student needs.

			Name	Type	Generated Value

a	integer	35
P	number	2694.5
R	number	2621.3
b	integer	70

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

→ Used by:

This variable doesn't seem to be used anywhere.

Advice

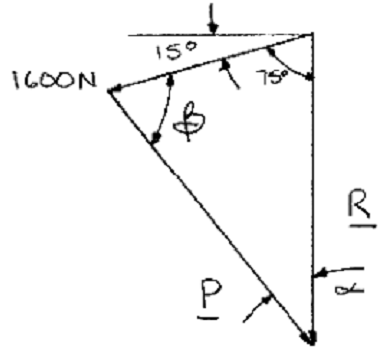

Using the triangle rule and the rule of sines

(a)

$\dfrac{1600\;\text{N}}{\sin \alpha}=\dfrac{P}{\sin 75^\circ}$

$P=\var{P}\;\text{N}$ ◀

(b)

$\alpha+\beta+75^\circ=180^\circ$

$\beta=180^\circ-\alpha-75^\circ=\var{b}^\circ$

$\dfrac{1600\;\text{N}}{\sin \alpha}=\dfrac{R}{\sin \var{b}^\circ}$

$R=(1600\;\text{N})\dfrac{\sin \var{a}^\circ}{\sin \var{b}^\circ}$

$R=\var{R}\;\text{N}$ ◀

Give a worked solution to the whole question.
