Question statement

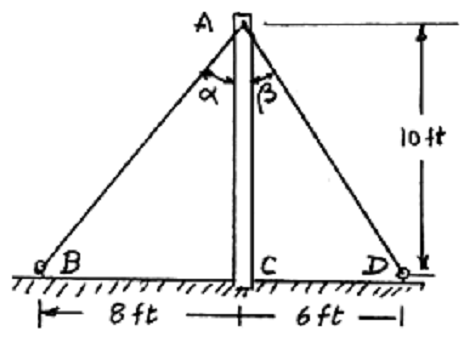

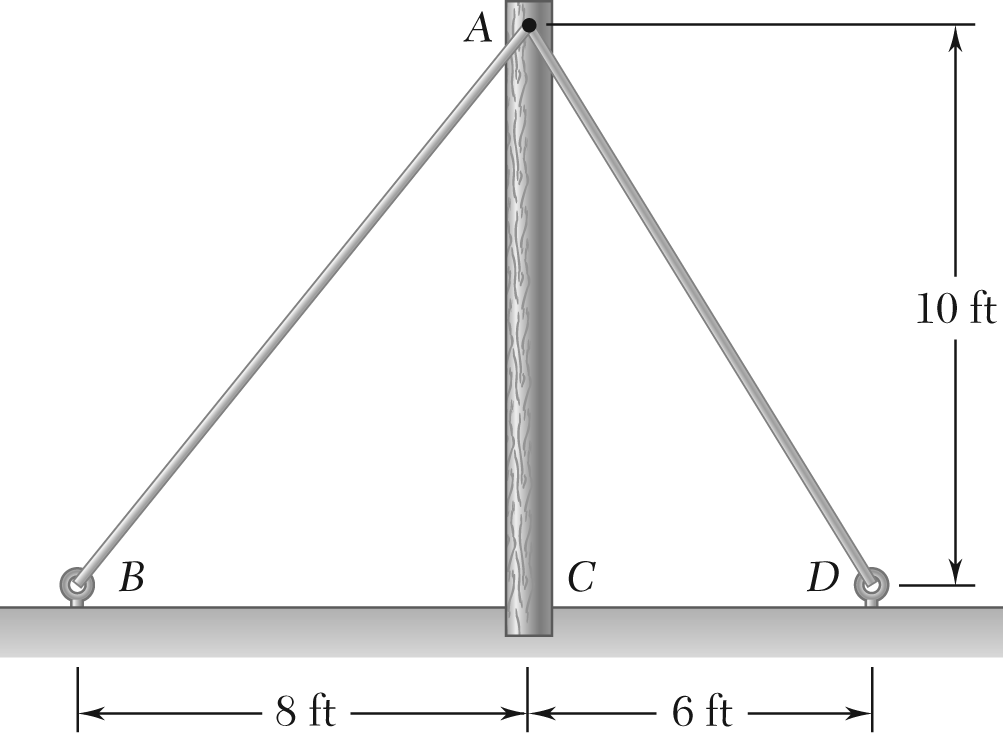

The cable stays AB and AD help support pole AC. Knowing that the tension is {tAB}N in AB and {tAD}N in AD,

Give any introductory information the student needs.

			Name	Type	Generated Value

tAB	integer	86
tAD	integer	122
R	number	172.0
gammaAB	number	38.66
gammaAD	number	30.96
a	number	41.67

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

This variable doesn't seem to be used anywhere.

Advice

$\tan \alpha=\frac{8}{10}\quad\Rightarrow\quad \alpha=\var{gammaAB}^\circ$

$\tan \beta=\frac{6}{10}\quad\Rightarrow\quad \beta=\var{gammaAD}^\circ$

(a) Using the triangle rule

$\alpha+\beta+\psi=180^\circ$

$\psi=180^\circ-\var{gammaAB}^\circ-\var{gammaAD}^\circ=110.38^\circ$

Using the rule of cosines

$R^2=T_{AB}^2+T_{AD}^2-2T_{AB}T_{AD}\cos\psi$

$R^2=\var{tAB}^2+\var{tAD}^2-2(\var{tAB})(\var{tAD})\cos 110.38^\circ$

$R=\var{R}\,\text{N}$ ◀

(b) Use the rule of sines

$\dfrac{\sin \gamma}{T_{AD}}=\dfrac{\sin \psi}{R}$

$\dfrac{\sin \gamma}{\var{tAD}\,\text{N}}=\dfrac{\sin 110.38^\circ}{\var{R}\,\text{N}}$

$\gamma=\var{a}^\circ$ ◀
