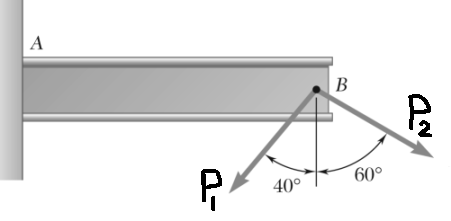

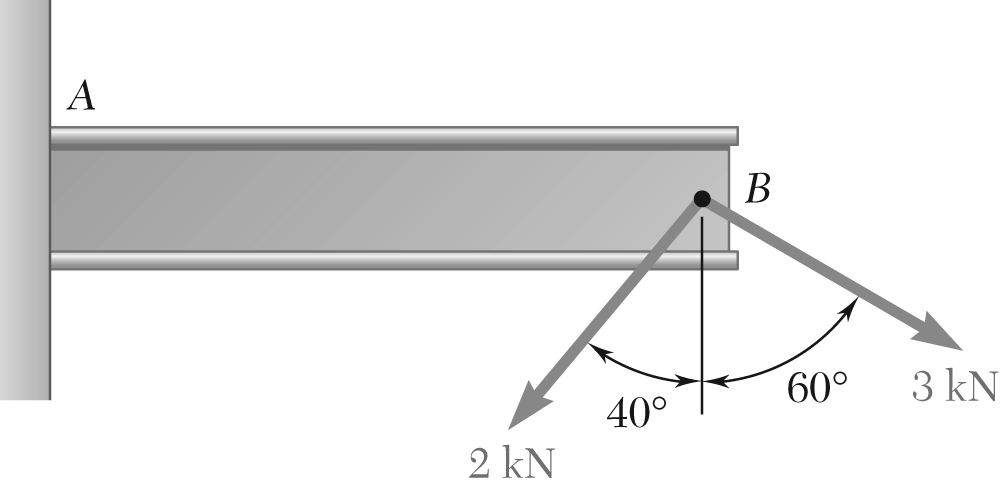

Two forces $P_1=\var{P1}\;\text{kN}$ and $P_2=\var{P2}\;\text{kN}$ are applied at Point B of beam AB.

Give any introductory information the student needs.

			Name	Type	Generated Value

P1	integer	7
P2	integer	10
R	number	11.17
a	integer	40
b	integer	60
phi	number	68.11
gamma	number	38.11
beta	number	61.89

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

→ Used by:

P2
R
gamma

This variable doesn't seem to be used anywhere.

Advice

(a) Using the law of cosines:

$R^2=(\var{P1}\;\text{kN})^2+(\var{P2}\; \text{kN})^2-2(\var{P1}\;\text{kN})(\var{P2}\;\text{kN})\cos 80^\circ$

$R=\var{R}\;\text{kN}$ ◀

(b) Using the law of sines

$\dfrac{\sin \gamma}{\var{P1}\;\text{kN}}=\dfrac{\sin 80^\circ}{R}$

$\gamma=\var{gamma}^\circ$

In the triangle

$\beta+\gamma+80^\circ=180^\circ$

$\beta=\var{beta}^\circ$

$\phi=180^\circ-\beta-50^\circ=\var{phi}^\circ$

$\phi=\var{phi}^\circ$ ⦪ ◀
