Question statement

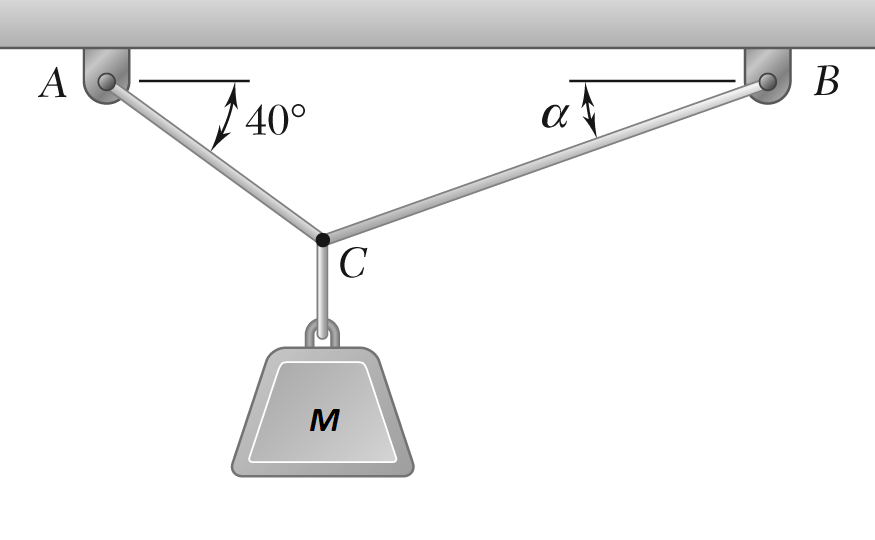

Two cables are tied together at C and are loaded as shown. Knowing that $\alpha=\var{a}^\circ$ and $M=\var{M}\text{kg}$ , determine the tension (in N)

Give any introductory information the student needs.

			Name	Type	Generated Value

M	integer	250
a	integer	20
tAC	number	2661.1
tBC	number	2169.4
W	number	2452.5

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

250

This variable doesn't seem to be used anywhere.

Advice

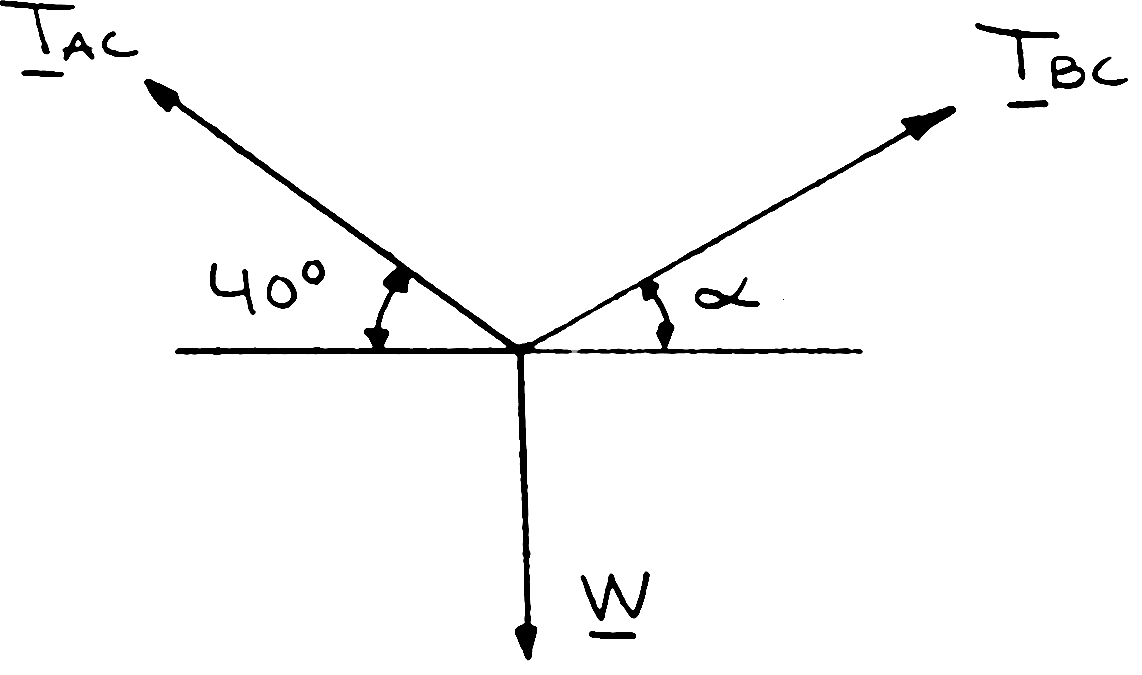

Free Body Diagram:

Force triangle:

$W=Mg=(\var{M}\,\text{kg}) (9.81\,\text{m}/\text{s}^2)=\var{W}\,\text{N}$

Law of sines:

$\dfrac{T_{AC}}{\sin (90^\circ-\alpha)}=\dfrac{T_{BC}}{\sin 50^\circ}=\dfrac{W}{\sin (40^\circ+\alpha)}$

(a)

$T_{AC}=(\var{W}\,\text{N})\dfrac{\sin (90^\circ-\var{a}^\circ)}{\sin (40^\circ+\var{a}^\circ)}=\var{tAC}\,\text{N}\quad\blacktriangleleft$

(b)

$T_{BC}=(\var{W}\,\text{N})\dfrac{\sin 50^\circ}{\sin (40^\circ+\var{a}^\circ)}=\var{tBC}\,\text{N}\quad\blacktriangleleft$

Give a worked solution to the whole question.
