Question statement

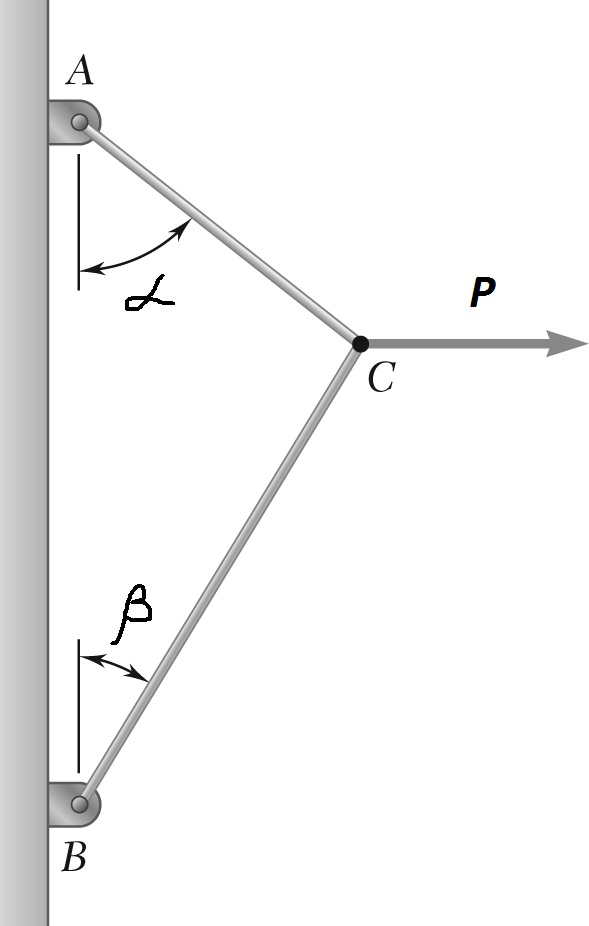

Two cables are tied together at C and are loaded as shown. Knowing that $P=\var{P}\, N$ , $\alpha=\var{a}^\circ$ and $\beta=\var{b}^\circ$ , determine the tension (in N)

Give any introductory information the student needs.

			Name	Type	Generated Value

a	integer	52
b	integer	32
P	number	500.0
tBC	number	309.5
tAC	number	426.4
right_alpha	integer	38
right_beta	integer	58
alpha_beta	integer	84

Automatically regenerate variables?

Name

Data type

Value

xxxxxxxxxx

random(20..60#2)

JME function reference

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

This variable doesn't seem to be used anywhere.

Advice

Free-Body Diagram:

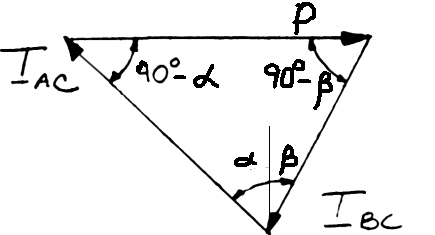

Force triangle:

Law of sines:

$\dfrac{T_{AC}}{\sin (90^\circ-\beta)}=\dfrac{T_{BC}}{\sin (90^\circ-\alpha)}=\dfrac{P}{\sin (\alpha+\beta)}$

$\dfrac{T_{AC}}{\sin \var{right_beta}^\circ}=\dfrac{T_{BC}}{\sin \var{right_alpha}^\circ}=\dfrac{\var{P}\,\text{N}}{\sin \var{alpha_beta}^\circ}$

(a)

$T_{AC}=\dfrac{\var{P}\,\text{N}}{\sin\var{alpha_beta}^\circ}\sin\var{right_beta}^\circ=\var{tAC}\,\text{N}\quad\blacktriangleleft$

(b)

$T_{BC}=\dfrac{\var{P}\,\text{N}}{\sin\var{alpha_beta}^\circ}\sin\var{right_alpha}^\circ=\var{tBC}\,\text{N}\quad\blacktriangleleft$
