Question statement

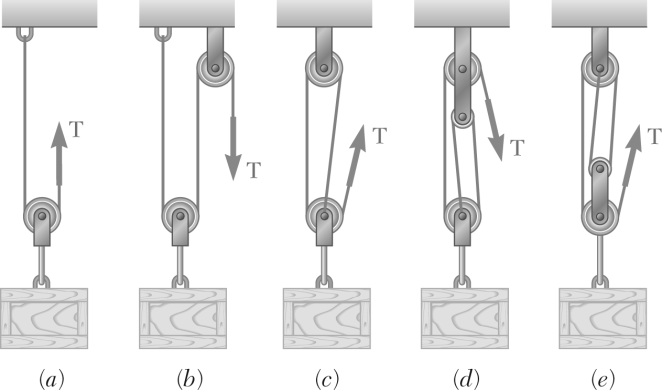

A $\var{W}\,\text{N}$ crate is supported by several rope-and-pulley arrangements as shown. Determine for each arrangement the tension in the rope (in N).

Give any introductory information the student needs.

			Name	Type	Generated Value

integer

336

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

336

→ Used by:

Statement
Advice
"Part a)" - Minimum accepted value
"Part a)" - Maximum accepted value
"Part b)" - Minimum accepted value
"Part b)" - Maximum accepted value
"Part c)" - Minimum accepted value
"Part c)" - Maximum accepted value
"Part d)" - Minimum accepted value
"Part d)" - Maximum accepted value
"Part e)" - Minimum accepted value
"Part e)" - Maximum accepted value

Advice

(a)

$+\!\!\uparrow\sum F_y=0$ : $\quad$ $2T+W=0,$ $\quad\Rightarrow\quad$ $2T=\var{W}\,\text{N},$ $\quad\Rightarrow\quad$ $T=\var{W/2}\,\text{N}\quad\blacktriangleleft$

(b) Same as (a)

(c)

$+\!\!\uparrow\sum F_y=0$ : $\quad$ $3T+W=0,$ $\quad\Rightarrow\quad$ $3T=\var{W}\,\text{N},$ $\quad\Rightarrow\quad$ $T=\var{W/3}\,\text{N}\quad\blacktriangleleft$

(d) Same as (c)

(e)

$+\!\!\uparrow\sum F_y=0$ : $\quad$ $4T+W=0,$ $\quad\Rightarrow\quad$ $4T=\var{W}\,\text{N},$ $\quad\Rightarrow\quad$ $T=\var{W/4}\,\text{N}\quad\blacktriangleleft$
