Question statement

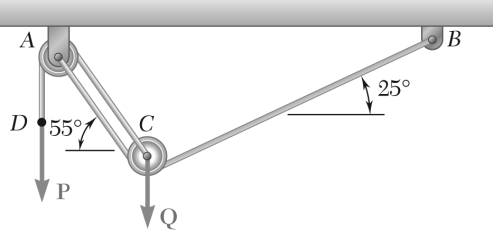

An $\var{Q}\,\text{N}$ load $\mathbf{Q}$ is applied to the pulley C, which can roll on the cable ACB. The pulley is held in the position shown by a second cable CAD, which passes over the pulley A and supports a load $\mathbf{P}$ . Determine

Give any introductory information the student needs.

			Name	Type	Generated Value

Q	integer	1700
tACB	number	990.1
P	number	574.4
kacb	number	0.5801

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

1700

This variable doesn't seem to be used anywhere.

Advice

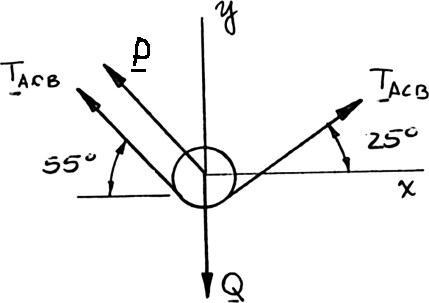

Free-Body Diagram

$\sum F_x=0$ : $T_{ACB}\cos 25^\circ-T_{ACB}\cos 55^\circ-P\cos 55^\circ=0$

$P=T_{ACB}\dfrac{\cos 25^\circ-\cos 55^\circ}{\cos 55^\circ}=\var{kacb}\,T_{ACB}$

$\sum F_y=0$ : $T_{ACB}\sin 25^\circ+T_{ACB}\sin 55^\circ+P\sin 55^\circ-Q=0$

$T_{ACB}=\dfrac{Q}{\sin 25^\circ+\sin 55^\circ+\var{kacb}\sin 55^\circ}=\var{tACB}\,\text{N}\quad\blacktriangleleft$

$P=\var{kacb}\,T_{ACB}=\var{P}\,\text{N}\quad\blacktriangleleft$
