Question statement

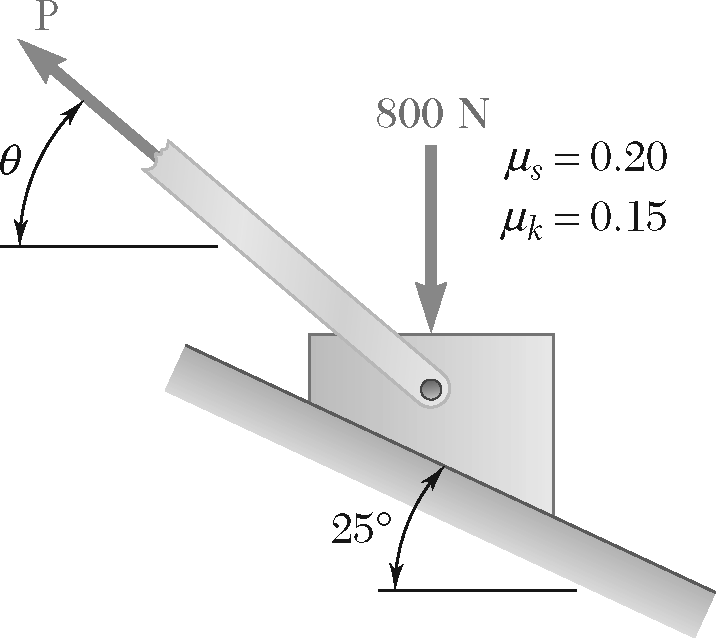

Knowing that $\theta=\var{th}^\circ$ , determine the range of values of $P$ for which equilibrium is maintained.

Give any introductory information the student needs.

			Name	Type	Generated Value

th	integer	55
mu_s	number	0.2
mu_k	number	0.15
Pmin	number	252.1
Pmax	number	500.1
phi	number	11.31

Automatically regenerate variables?

Name

Data type

Value

xxxxxxxxxx

random(10..70#5 except 25)

JME function reference

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

→ Used by:

Pmax
Pmin

This variable doesn't seem to be used anywhere.

Advice

$+\!\!\nearrow\sum F_y=0,\quad\implies\quad N-800 \cos 25^\circ+P\sin(\theta-25^\circ)=0$

$N=800 \cos 25^\circ-P\sin( \var{th-25}^\circ),$

$F_m=\mu_s N$

To start moving the block up the incline:

$+\!\!\searrow\sum F_x=0,\quad\implies\quad \mu_s N-P\cos(\theta-25^\circ)+800\sin 25^\circ=0$

$\mu_s (800 \cos 25^\circ-P\sin\var{th-25}^\circ)-P\cos\var{th-25}^\circ+800\sin 25^\circ=0$

$\mu_s 800 \cos 25^\circ-\mu_s P\sin\var{th-25}^\circ-P\cos\var{th-25}^\circ+800\sin 25^\circ=0$

$\mu_s 800 \cos 25^\circ+800\sin 25^\circ=+P[\mu_s \sin\var{th-25}^\circ+\cos\var{th-25}^\circ]$

$P=\dfrac{800(\sin 25^\circ+\mu_s\cos 25^\circ)}{\cos\var{th-25}^\circ+\mu_s \sin\var{th-25}^\circ}=\var{Pmax}\,\text{N}\quad\blacktriangleleft$

To prevent the block from moving down:

$+\!\!\searrow\sum F_x=0,\quad\implies\quad -\mu_s N-P\cos(\theta-25^\circ)+800\sin 25^\circ=0$

$-\mu_s (800 \cos 25^\circ-P\sin \var{th-25}^\circ)-P\cos\var{th-25}^\circ+800\sin 25^\circ=0$

$-\mu_s 800 \cos 25^\circ +\mu_s P\sin \var{th-25}^\circ- P\cos \var{th-25}^\circ+800\sin 25^\circ=0$

$\mu_s P\sin \var{th-25}^\circ- P\cos\var{th-25}^\circ-\mu_s 800 \cos 25^\circ +800\sin 25^\circ=0$

$-\mu_s 800 \cos 25^\circ +800\sin 25^\circ=P[\cos\var{th-25}^\circ-\mu_s \sin\var{th-25}^\circ]$

$P=\dfrac{800(\sin 25^\circ-\mu_s\cos 25^\circ)}{\cos\var{th-25}^\circ-\mu_s \sin\var{th-25}^\circ}=\var{Pmin}\,\text{N}\quad\blacktriangleleft$

$\var{Pmin}\,\text{N} \le P \le \var{Pmax}\,\text{N}\quad\blacktriangleleft$

Alternative solution:

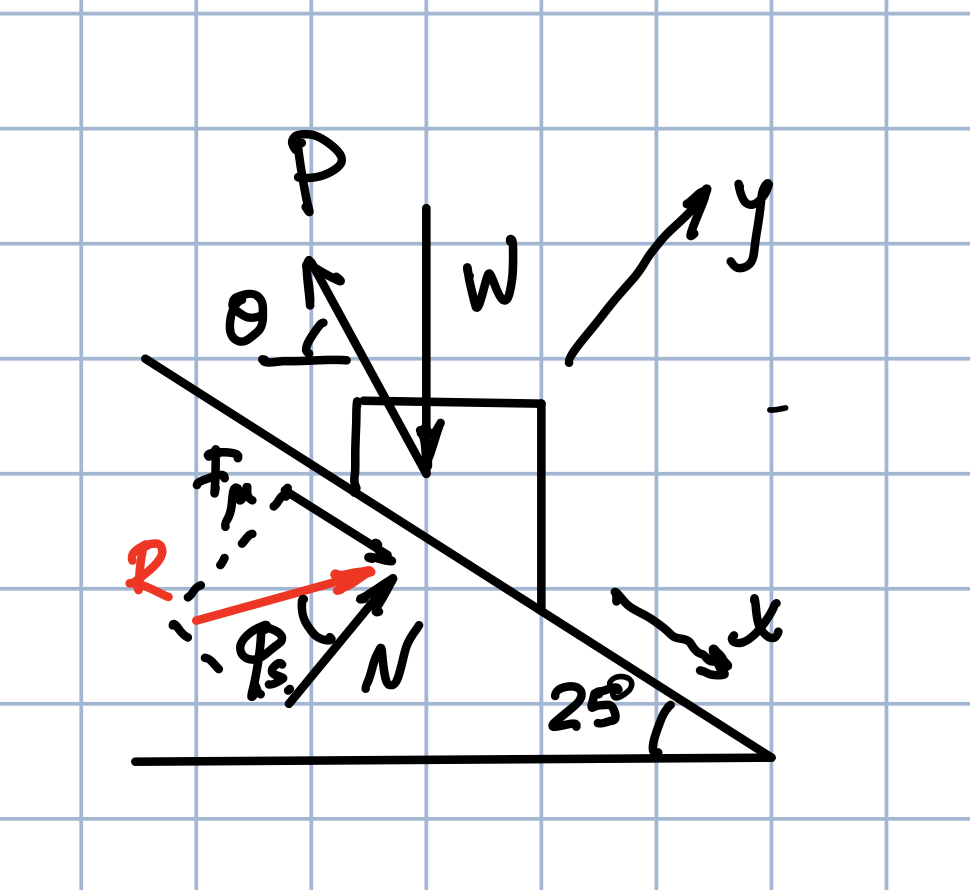

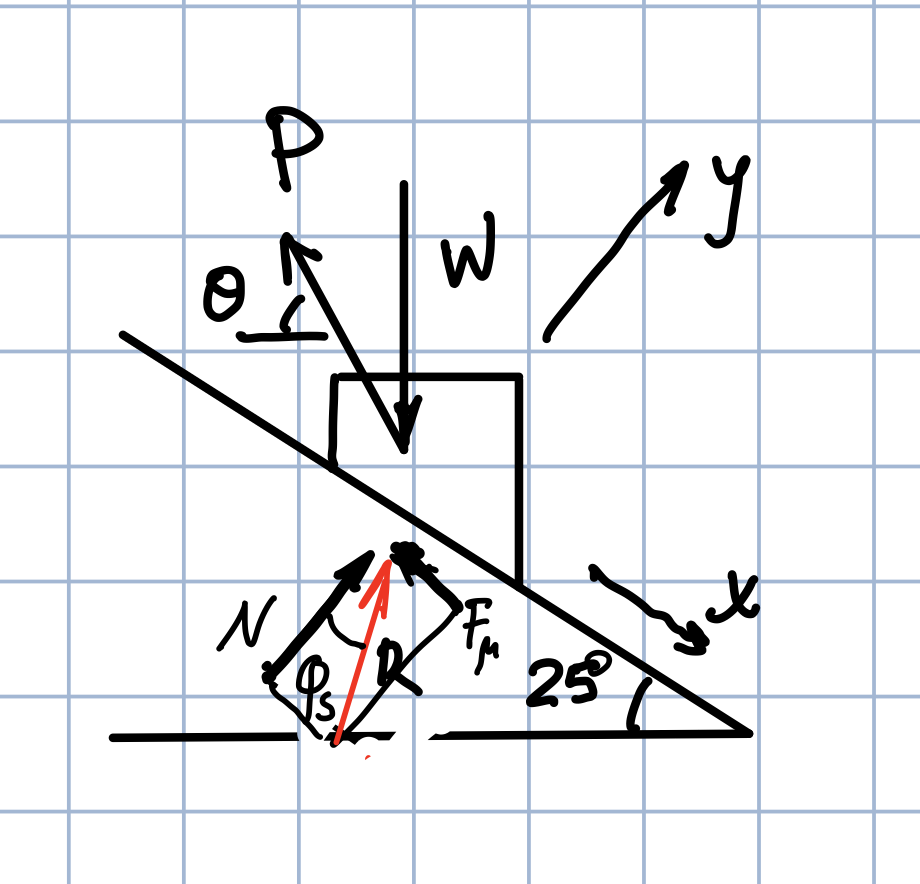

Combine the normal and friction forces $\vec{R}=\vec{N}+\vec{F}_\mu$ . When $F_\mu=\mu_sN$ , the angle between the resultant $\vec{R}$ and the normal force is the friction angle:

$\phi_s=\arctan \mu_s=\arctan \var{mu_s}=\var{phi}^\circ.$

To prevent the block from moving up:

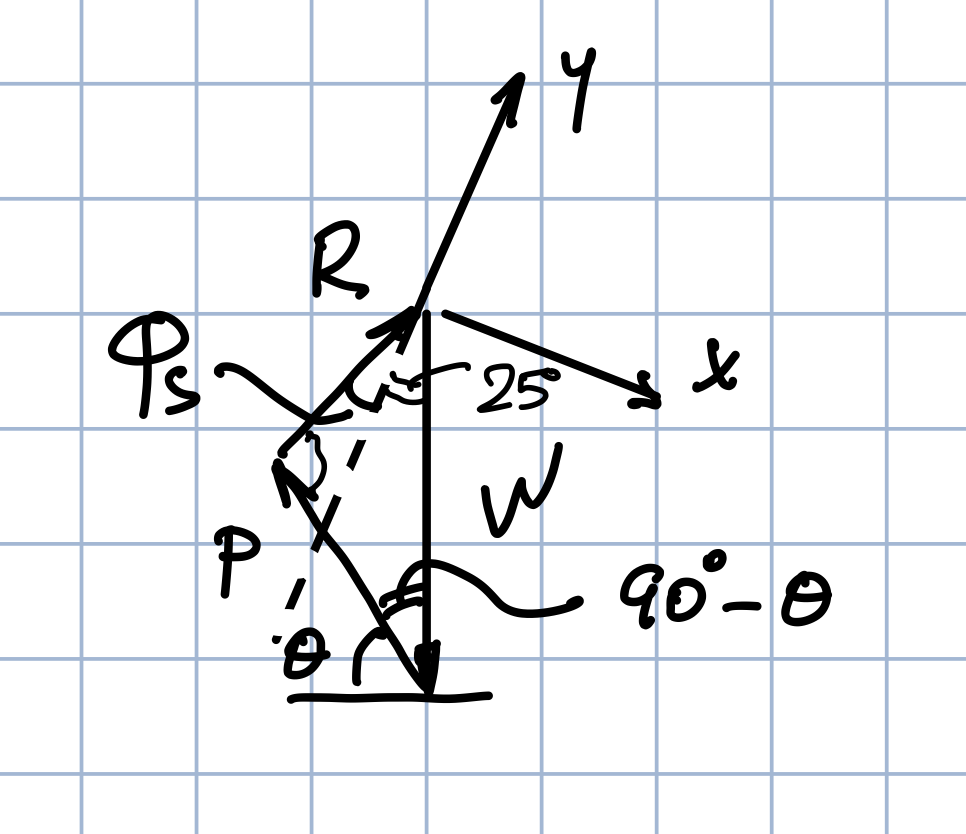

In this case there are only three forces acting on the block, which in view of equilibrium, form a triangle:

In this triangle, the angle between the force $\vec{R}$ and weight $\vec{W}$ is $\phi_s+25^\circ$ . Using the law of sines:

$\displaystyle\frac{P}{\sin (\phi_s+25^\circ)}=\frac{W}{\sin \left[180^\circ-(\phi_s+25^\circ)-(90^\circ-\theta)\right]},$

$\displaystyle\frac{P}{\sin\var{phi+25}^\circ}=\frac{800}{\sin\var{180-phi-25-90+th}^\circ},$

$P=800\dfrac{\sin\var{phi+25}^\circ}{\sin\var{180-phi-25-90+th}^\circ}=\var{Pmax}\,\text{N}.\,\blacktriangleleft$

To prevent the block from moving down send the friction force up the incline:

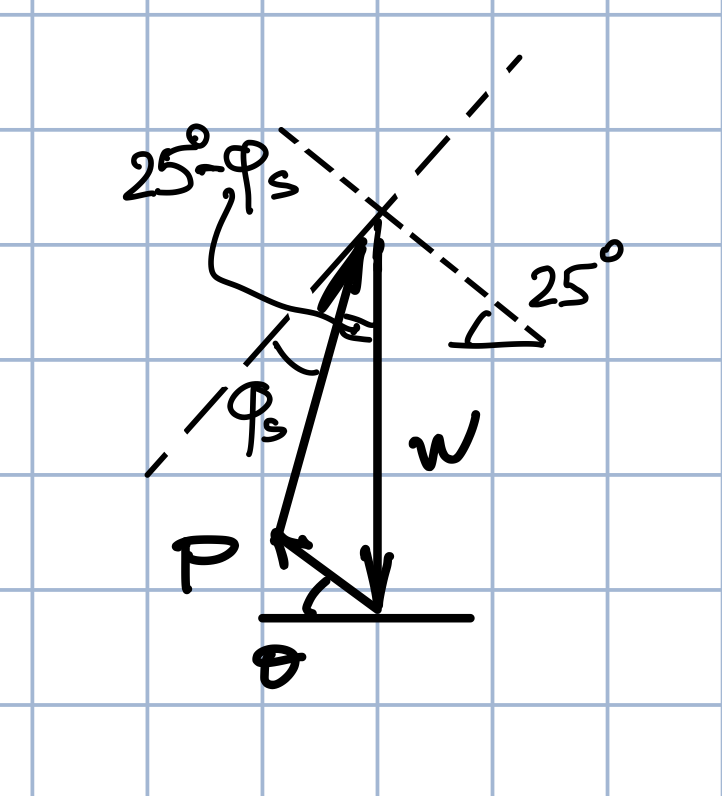

Form a triangle:

In this triangle, the angle between the force $\vec{R}$ and weight $\vec{W}$ is $25^\circ-\phi_s$ . Using the law of sines:

$\displaystyle\frac{P}{\sin (25^\circ-\phi_s)}=\frac{W}{\sin \left[180^\circ-(25^\circ-\phi_s)-(90^\circ-\theta)\right]},$

$\displaystyle\frac{P}{\sin\var{-phi+25}^\circ}=\frac{800}{\sin\var{180+phi-25-90+th}^\circ},$

$P=800\dfrac{\sin\var{-phi+25}^\circ}{\sin\var{180+phi-25-90+th}^\circ}=\var{Pmin}\,\text{N}\,\blacktriangleleft$

$\var{Pmin}\,\text{N} \le P \le \var{Pmax}\,\text{N}.\quad\blacktriangleleft$
