Question statement

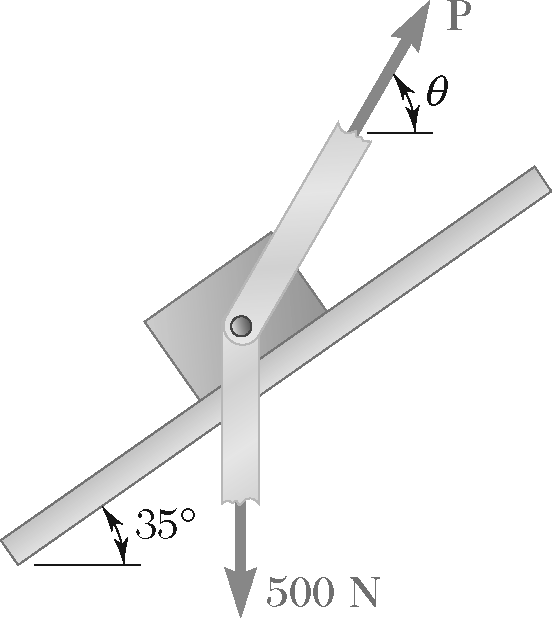

The coefficient of friction between the block and the rail is $\mu_s=\var{mu_s}$ . Knowing that $\theta=\var{th}^\circ$ , determine the smallest value of P (in N) required

Give any introductory information the student needs.

			Name	Type	Generated Value

mu_s	number	0.35
th	integer	80
Pmin	number	312.1
Pmax	number	450.6

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `number`

0.35

→ Used by:

Pmax
Pmin

Statement

Advice

$+\!\!\nwarrow\sum F_y=0,\quad\implies\quad N-500 \cos 35^\circ+P\sin(\theta-35^\circ)=0$

$N=500 \cos 35^\circ-P\sin( \var{th-35}^\circ),$

$F_m=\mu_s N$

To start moving the block up the incline:

$+\!\!\swarrow\sum F_x=0,\quad\implies\quad \mu_s N-P\cos(\theta-35^\circ)+500\sin 35^\circ=0$

$\mu_s (500 \cos 35^\circ-P\sin \var{th-35}^\circ)-P\cos \var{th-35}^\circ+500\sin 35^\circ=0$

$P=\dfrac{500\,(\sin 35^\circ+\mu_s\cos 35^\circ)}{\cos \var{th-35}^\circ+\mu_s \sin \var{th-35}^\circ}=\var{Pmax}\,\text{N}\quad\blacktriangleleft$

To prevent the block from moving down:

$+\!\!\swarrow\sum F_x=0,\quad\implies\quad -\mu_s N-P\cos(\theta-35^\circ)+500\sin 35^\circ=0$

$-\mu_s (500 \cos 35^\circ-P\sin \var{th-35}^\circ)-P\cos \var{th-35}^\circ+500\sin 35^\circ=0$

$P=\dfrac{500\,(\sin 35^\circ-\mu_s\cos 35^\circ)}{\cos\var{th-35}^\circ-\mu_s \sin \var{th-35}^\circ}=\var{Pmin}\,\text{N}\quad\blacktriangleleft$

$\var{Pmin}\,\text{N} \le P \le \var{Pmax}\,\text{N}\quad\blacktriangleleft$
