Question statement

The Fundamental Theorem of Planar Curves states that every curve in $\mathbb{R}^{2}$ with non-zero curvature is completely determined by its signed curvature, $\kappa(t)$, and some initial condition for a point on the curve.

Below are six curves $\gamma(t)$, all of which satisfy $\gamma(0)=(0,0)$ and $\gamma^{\prime}(0)=(0,1)$. The corresponding signed curvatures are as follows:

A: $\simplify{1/{quadratic[0]}*(t+{quadratic[1]})(t+{quadratic[2]})}$

B: $\simplify{{sin[0]}*t*sin({sin[1]}*t)}$

C: $\simplify{exp({exp}*t)}$

D: $\simplify{1/{cubic[0]}*(t+{cubic[1]})(t+{cubic[2]})(t+{cubic[3]})}$

E: $\simplify{({quotient[0]}*t)/({quotient[1]}+{quotient[2]}*t^2)}$

F: $\simplify{{cos[0]}*t*cos({cos[1]}*t)}$

Give any introductory information the student needs.

			Name	Type	Generated Value

quadratic	list	[ 3, 1, -3 ]
cubic	list	[ 4, 2, 4, -4 ]
quotient	list	[ 3, 2, 2 ]
cos	list	[ 2, 2 ]
sin	list	[ -2, 2 ]
exp	integer	-1

			Name	Type	Generated Value

quadstr	string	(Math.pow(#,3)/3+-2##/2+-3*#
cubstr	string	(Math.pow(#,4)/4+2*Math.pow(#,
quostr	string	Math.log(2+2##)3/(22)
cosstr	string	2(Math.cos(2#)/(4)+#*Math.si
sinstr	string	-2(Math.sin(2#)/(4)+#*Math.c
expstr	string	Math.exp(-1*#)

			Name	Type	Generated Value

collected	list	Nested 6×2 list
markingmatrix1	matrix	Matrix of size 6×3
markingmatrix2	matrix	Matrix of size 6×3

Automatically regenerate variables?

Name

Data type

Value

xxxxxxxxxx

[random(2..4),random(-3..3 except 0),random(-3..3 except 0)]

JME function reference

Description

Generates the list of constants {a,b,c} for a quadratic (t+b)(t+c)/a.

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `list`

[ 3, 1, -3 ]

This variable doesn't seem to be used anywhere.

Match choices with answers

Ask the student a question, and give any hints about how they should answer this part.

Minimum marks

Maximum marks

Show correct answer on reveal?

Show score feedback icon?

Advanced settings

Minimum answers

Maximum answers

What to do if wrong number of answers selected:

Selection type

Layout

Show choice feedback state?

{graph({collected[0][0]})}
{graph({collected[1][0]})}
{graph({collected[2][0]})}

For each combination of answer and choice, specify the number of marks to add or subtract when the student picks it.

	{graph({collected[0][0]})}	{graph({collected[1][0]})}	{graph({collected[2][0]})}
A
B
C
D
E
F

Advice

In principle, given a signed curvature function $\kappa(t)$ and an intitial condition $\gamma(0)$, $\gamma^{\prime}(0)$, we can find the equation $\gamma:\,\mathbb{R}\to\mathbb{R}^{2}$ of the curve using

$\theta(t)=\int\kappa(t)\mathrm{d}t$

$\gamma=(\int \cos(\theta(t)-\theta_{0})\mathrm{d}t,\,\int \sin(\theta(t)-\theta_{0})\mathrm{d}t),$

where $\theta_{0}$ is determined by the initial conditions. However, this is often not feasible to work out explicitly: for example, if $\kappa(t)=t$ and $\gamma(0)=(0,0)$ and $\gamma^{\prime}(0)=(0,1)$, then we must find

$\int \cos(\frac{t^{2}}{2})\mathrm{d}t,$

which has no nice form.

Instead, we can relate properties of the signed curvature to properties of the curve:

Symmetry: if $\kappa(t)$ is an even function, then $\gamma$ has reflection symmetry; if $\kappa(t)$ is odd, $\gamma$ has rotational symmetry.
Turning points: if $\kappa(t)$ changes sign at a point, then the curve $\gamma$ will change from anticlockwise to clockwise rotation (and vice versa). Note that $\kappa(t)$ must change sign: it is not enough for $\kappa(t)$ to equal $0$ at some point.
Asymptotics: As $t\to\pm\infty$, we can determine the behaviour of $\kappa(t)$: if it tends to $0$ as $t\to\infty$, then $\gamma$ curves less as we travel rightwards along it; if $\kappa(t)\to\infty$ as $t\to\infty$ then $\gamma$ curves more and more sharply; if $\kappa(t)$ has no limit as $t\to\infty$ then we expect oscillations.

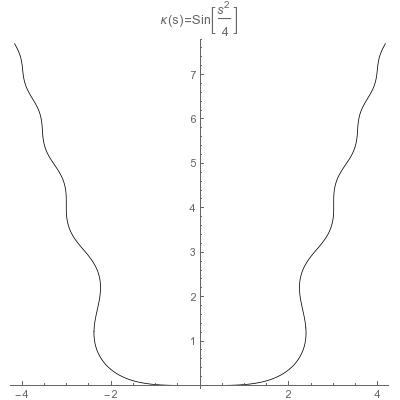

Consider, as an example,

$\kappa(t)=\sin\left(\frac{t^{2}}{2}\right).$

This is an even function, as the argument is $t^{2}$ so $\kappa(-t)=\kappa(t)$; hence $\gamma$ has reflection symmetry. $\sin(x)$ changes sign an infinite number of times, so we expect infinitely many changes from clockwise to anticlockwise. Finally, $\sin(x)$ has no limit as we take $x\to\infty$, corresponding to $t\to\pm\infty$, so we would expect the curve to oscillate. Then we can see that this $\kappa(t)$ corresponds to the following graph:

Give a worked solution to the whole question.
