Question statement

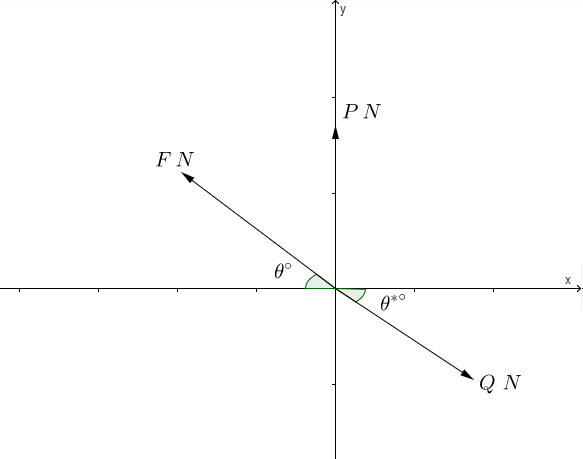

$F = \var{force1} \, \mathrm{N}$ at an angle of $\theta = \var{theta1}^{\circ}$ clockwise from the left horizonatal.
$P = \var{force2} \, \mathrm{N}$ vertically upwards.
$Q = \var{force3} \, \mathrm{N}$ at an able of $\theta^{\ast} = \var{theta2}^{\circ}$ clockwise from the right horizontal.

Give your answers to the following questions in Newtons to 3 decimal places.

Give any introductory information the student needs.

			Name	Type	Generated Value

f1x	number	-1.4334717982
f1y	number	3.734321706
f3x	number	9.292402207
f3y	number	-1.9751610628

			Name	Type	Generated Value

force1	integer	4
force2	number	3
force3	number	9.5
theta1	integer	69
theta2	integer	12
yangle1	integer	21
yangle2	integer	102

Automatically regenerate variables?

Name

Data type

Value

xxxxxxxxxx

-force1*cos(radians(theta1))

JME function reference

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `number`

-1.4334717982

← Depends on:

force1
theta1

This variable doesn't seem to be used anywhere.

Advice

a) - c)

Resolve each force in the HORIZONTAL:

$P$ doesn't contribute.

The force $F$ is at $\var{theta1}^{\circ}$ to the horizontal, therefore has a contribution of $F \times \cos \var{theta1}^{\circ} = \var{force1} \times \cos \var{theta1}^{\circ} = \var{precround(force1*cos(radians(theta1)),3)}$ . This force is acting to the left.

The force $Q$ is at $\var{theta2}^{\circ}$ to the horizontal, therefore has a contribution of $Q \times cos \var{theta2}^{\circ} = \var{force3} \times \cos\var{theta2}^{\circ} = \var{precround(force3*cos(radians(theta2)),3)}$ . This is acting to the right.

Therefore the sum of components in the $x$ -direction is

forces acting to the right - forces acting to the left

$\var{precround(force3*cos(radians(theta2)),3)} - \var{precround(-force1*cos(radians(180-theta1)),3)}$

$= \var{precround(force1*cos(radians(180-theta1)) + force3*cos(radians(theta2)),3)}$

(if this value is positive then it is acting to the right, if it is negative it is acting to the left)

d) - g)

Resolve each force from the VERTICAL:

For the force $P$ this is acting completely in the positive direction, at no angle. Therefore it's contribution is $\var{force2}$ .

The force $F$ is at $\var{theta1}^{\circ}$ to the horizontal, therefore has a contribution of $F \times \sin \var{theta1}^{\circ} = \var{force1} \times \sin \var{theta1}^{\circ} = \var{precround(force1*sin(radians(theta1)),3)}$ . This force is acting upwards.

Therefore the sum of components in the $y$ -direction is

forces acting up - forces acting down

$\var{precround(force3*sin(radians(theta2)),3)} - \var{precround(-force1*sin(radians(180-theta1)),3)}$

$= \var{precround(force1*sin(radians(180-theta1)) + force3*sin(radians(theta2)),3)}$

(if this value is positive then it is acting to the right, if it is negative it is acting to the left)
