Question statement

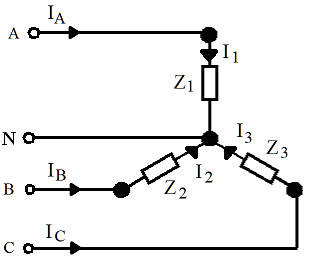

A balanced, three phase, {VLINE} V system is supplying a load connected in {type}.

{image('resources/question-resources/'+Circuit)}

The loads are:

$Z_1 = \var{R1}+i\ \var{X1}\ \Omega$

$Z_2 = \var{R2}+i\ \var{X2}\ \Omega$

$Z_3 = \var{R3}+i\ \var{X3}\ \Omega$

Give any introductory information the student needs.

			Name	Type	Generated Value

VLINE	integer	1000
VPH	number	577.3502691896
Voltages	list	[ 577.3502691896, 1000 ]
VA	number	577.3502691896
VB	number	-288.6751345948 - 500i
VC	number	-288.6751345948 + 500i
V1	number	577.3502691896
V2	number	-288.6751345948 - 500i
V3	number	-288.6751345948 + 500i

			Name	Type	Generated Value

R1	integer	77
R2	integer	69
R3	integer	35
X1	integer	57
X2	integer	22
X3	integer	38

			Name	Type	Generated Value

I1	number	4.8437536204 - 3.5856357969i
I2	number	-5.8948683102 - 5.3668535823i
I3	number	3.3332222889 + 10.6667872292i
IA	number	4.8437536204 - 3.5856357969i
IB	number	-5.8948683102 - 5.3668535823i
IC	number	3.3332222889 + 10.6667872292i
Neutral	number	2.854265617
I1angle	number	-36.5110561195
I2angle	number	-137.6843920266
I3angle	number	72.6467031339
IAangle	number	-36.5110561195
IBangle	number	-137.6843920266
ICangle	number	72.6467031339

			Name	Type	Generated Value

PA	number	2796.5424565991
PB	number	4385.1286939943
PC	number	4371.175221681
P1	number	2796.5424565991
P2	number	4385.1286939943
P3	number	4371.175221681
PLine	number	11552.8463722744
PLoad	number	11552.8463722744

			Name	Type	Generated Value

StarorDelta	integer	0
type	string	star with a neutral
types	list	List of 2 items
Circuit	string	StarCircuit_zxgxKjR.png
Diagrams	list	List of 2 items

			Name	Type	Generated Value

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Rated Voltage

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

1000

→ Used by:

VPH
Voltages

Statement

Parts

Load Currents Gap-fill
1. Step Information only
Supply Currents Gap-fill
1. Step Information only
Supply Power Gap-fill
1. Gap Line Power A Number entry
  Add
2. Gap Line Power B Number entry
  Add
3. Gap Line Power C Number entry
  Add
1. Step Information only
Load Power Gap-fill
1. Gap Load Power 1 Number entry
  Add
2. Gap Load Power 2 Number entry
  Add
3. Gap Load Power 3 Number entry
  Add
1. Step Information only

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

What is the load voltage? Load Voltage V

Using $V_A$ as the reference voltage, calculate the currents in each load:

$I_1 =$ Load Current 1 magnitude $\angle$ Load Current 1 angle $^o$ A

$I_2 =$ Load Current 2 magnitude $\angle$ Load Current 2 angle $^o$ A

$I_3 =$ Load Current 3 magnitude $\angle$ Load Current 3 angle $^o$ A
