Question statement

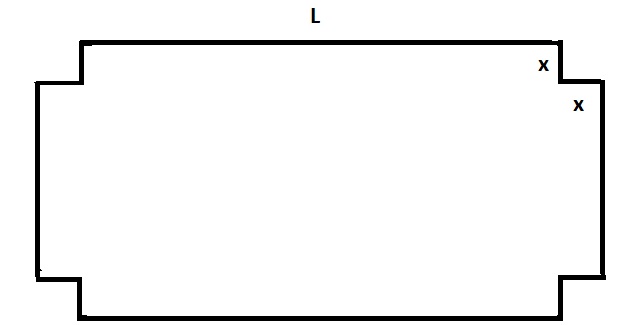

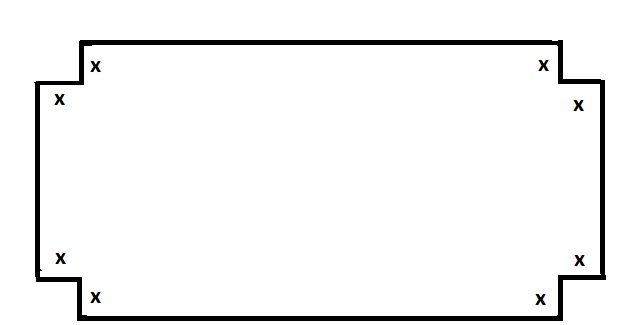

A rectangular sheet of metal of length = $\var{l}cm$ and width = $\var{w}cm$ has a square of side $x\,cm$ cut from each corner. The ends and sides will be folded upwards to form an open box.

Determine the value of $x$ that will maximise the volume of this box.

Give any introductory information the student needs.

			Name	Type	Generated Value

			l	integer	60
			w	integer	16

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

This variable doesn't seem to be used anywhere.

Parts

Gap-fill
1. Gap Number entry
  Add

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

Input the value for $x$ correct to one decimal place.

$x =$ Unnamed gap

Advice

The length of the box is $\var{l}-2x$ , the width is $\var{w}-2x$ and the height is $x$ .

The volume is then given by

$V=(\var{l}-2x).(\var{w}-2x).x$

$V=\simplify{4x^3-2*({w}+{l})x^2+{l}*{w}x}$

$\frac{dV}{dx}=\simplify{12x^2-4*({w}+{l})x+{l}*{w}}$

This is a quadratic equation.

$x=\frac{\simplify{4*({w}+{l})}\pm\sqrt(\simplify{16*({w}+{l})^2-48*{w}*{l}})}{24}$

$x=\frac{\simplify{{w}+{l}}\pm\sqrt(\simplify{{w}^2-{w}*{l}+{l}^2})}{6}$

$\frac{d^2V}{dx^2}=\simplify{24x-4*({w}+{l})}$

when $x=\simplify{({w}+{l}-sqrt({w}^2-{w}*{l}+{l}^2))/6}$ $\frac{d^2V}{dx^2}<0$ and therefore is the value that gives a maximum.
