Question statement

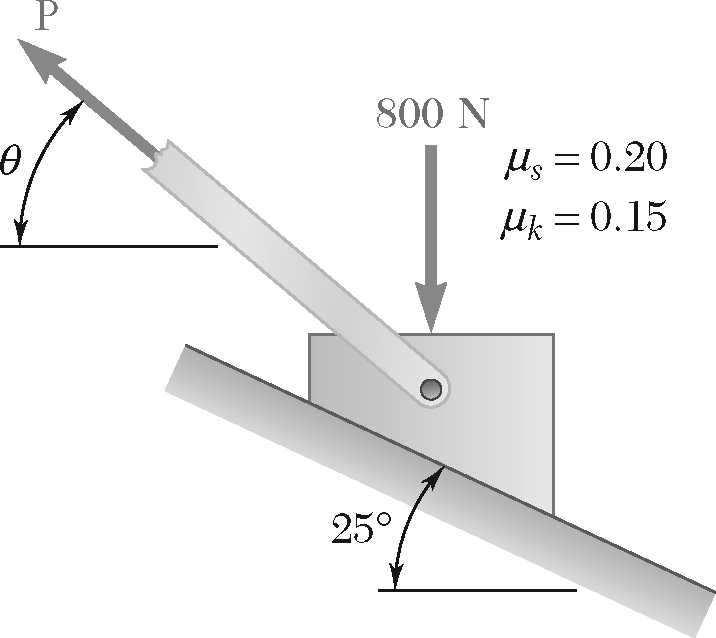

Determine whether the block shown is in equilibrium and find the magnitude and direction of the friction force when $\theta=\var{th}^\circ$ and $P=\var{P}\,\text{N}$

Give any introductory information the student needs.

			Name	Type	Generated Value

th	integer	60
P	integer	280
normal_force	number	564.4
mu_s	number	0.2
mu_k	number	0.15
friction_force_trial	number	108.7
max_friction_force	number	112.9
equil	list	[ 1, 0 ]
friction_force	number	108.7
direction	list	[ 1, 0 ]
direction_string	string	up the slope

Automatically regenerate variables?

Name

Data type

Value

A random number between and (inclusive) with step size

Description

Describe what this variable represents, and list any assumptions made about its value.

Can an exam override the value of this variable?

Generated value: `integer`

→ Used by:

friction_force_trial
normal_force

This variable doesn't seem to be used anywhere.

Parts

Gap-fill
1. Gap Gap 0. Choose one from a list
  Add
2. Gap Gap 1. Number entry
  Add
3. Gap Gap 2. Choose one from a list
  Add

Gap-fill

Ask the student a question, and give any hints about how they should answer this part.

(a) Is the block in equilibrium? Gap 0.

(b) The magnitude of the friction force (N) is Gap 1.

and it is directed Gap 2.

Advice

(a)

Assume equilibrium

$+\!\!\nearrow\sum F_y=0,\quad\implies\quad N-(800\,\text{N})\cos 25^\circ +(\var{P}\,\text{N})\sin(\var{th}^\circ-25^\circ)=0$

$N=\var{normal_force}\,\text{N}$

$+\!\!\searrow\sum F_x=0,\quad\implies\quad -F_\mu+(800\,\text{N})\sin 25^\circ-(\var{P}\,\text{N})\cos (\var{th}^\circ-25^\circ)=0$

$F_\mu=\var{friction_force_trial}\,\text{N}$ is required for equilibrium.

Maximum friction force: $F_m=\mu_s N=0.2\times\var{normal_force}=\var{max_friction_force}\,\text{N}$

Since $|F_\mu| > F_m$ , the block is sliding,

(b)

and the magmitude of the friction force is

$F_\mu=\mu_k N=\var{abs(friction_force)}\,\text{N},\quad\var{direction_string}$

Since $|F_\mu| \le F_m$ , the block is in equilibrium, and

(b)

The magmitude of the friction force is

$F_\mu=\var{abs(friction_force)}\,\text{N},\quad\var{direction_string}$
